Plasma tof

• Microchannelplate chevron detectors, mounted on conflat flanges.
• All vacuum feedthroughs and interconnects are provided.
• The MCP40x4 allows up to 4 simultaneous hits to be recorded from one MCP detector.

Versions

• MCP18  18 mm active area

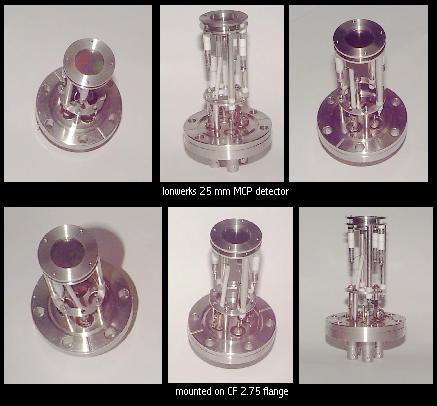

• MCP25  25 mm active area
• MCP36 36 mm active area
• MCP36H6  36 mm active area with shielded 6 mm inside diameter hole (8mm MCP hole)
• MCP40  40 mm active area
• MCP40x4 4 anode detector extends dynamic range of TDC detection schemes.

HVD - High voltage decoupler

The HVD converts a current pulse received from an electron multiplier on a high potential to a pulse that can be processed by standard detection electronics (TDC, transient recorders, oscillosopes).

The product includes all cables from UHV vacuum chamber to the decoupling box as well as connections to the amplifier (not included), from the High Voltage Power Supply (not included), and Constant Fraction Discriminator (not included).
